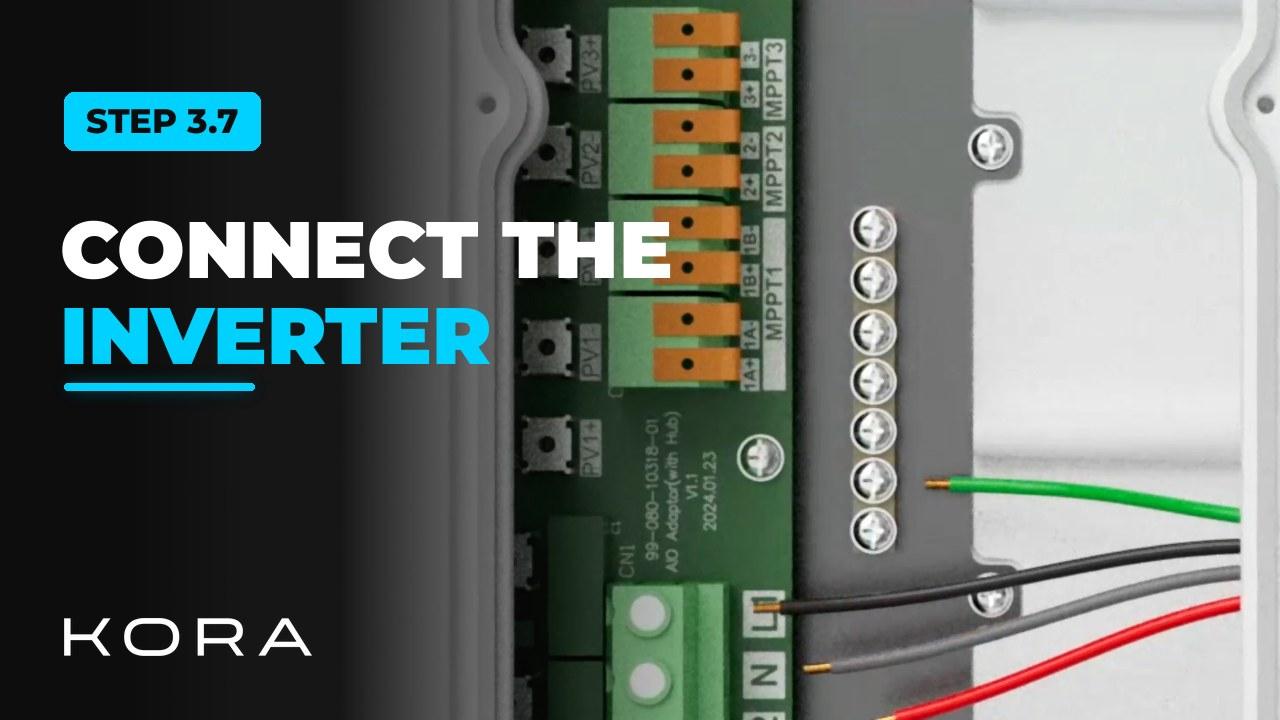

Kora Founders Edition Install 3.7 | Connecting Powerblocks to the Smart Panel
Wire each Powerblocks hybrid inverter to the Smart Panel.
Wire each Powerblocks hybrid inverter to the Smart Panel. Run L1, L2, neutral and ground from the inverter's wiring compartment to the tower's breaker position on the Smart Panel.
Land the conductors with the breaker open, and don't add neutral-ground bonds in the Powerblocks or in a combiner box.
Key steps
- Open the hybrid inverter's wiring cover
- Route L1, L2, neutral and ground to the Smart Panel
- Land the conductors with the breaker open
Part of the Kora Smart Panel installation series for licensed electricians installing the Kora Founders Edition. Previous: 3.6 Powerblocks Breaker Layout. Next: 3.8 Powerblocks Communications Daisy Chain.
From the manual
The matching pages from the Kora Smart Panel & Powerblocks Installation Manual. Always follow the manual and local code.
