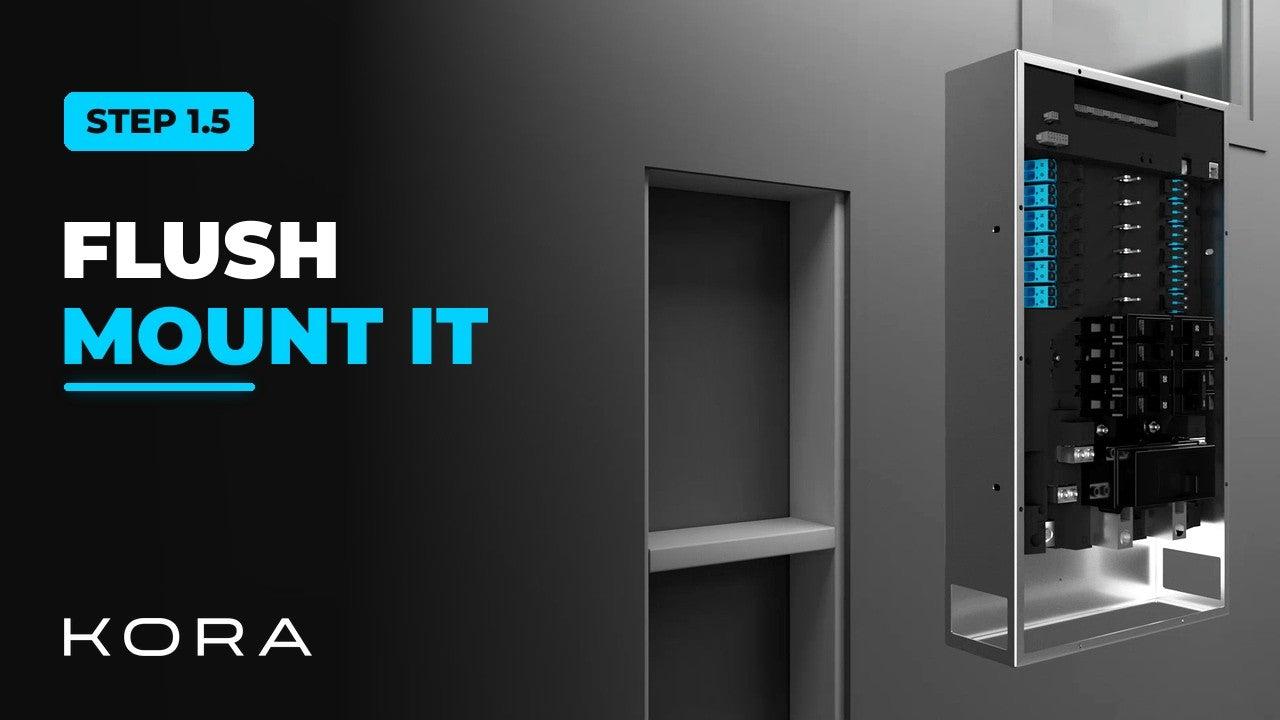

Kora Founders Edition Install 1.5 | Flush-Mount Recess and Backing
Create the recess and add solid blocking to flush mount the Kora Smart Panel indoors.
For a clean indoor look, flush mount the Smart Panel into the wall. Flush mounting is indoor only, and the exterior shell isn't used.
Frame the opening between the studs and add solid wood blocking so the wall can carry the panel's weight.
Key steps
- Create a recess for the panel between the wall studs
- Add solid wood blocking to support the panel's weight
- Check the cavity depth before the main assembly goes in
Part of the Kora Smart Panel installation series for licensed electricians installing the Kora Founders Edition. Previous: 1.4 Surface-Mount Installation. Next: 1.6 Set and Level the Main Assembly.

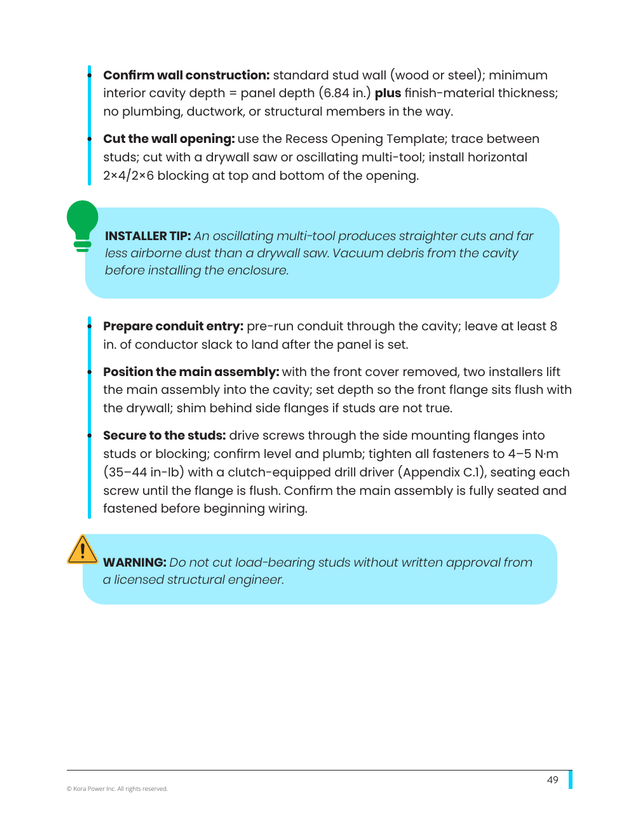

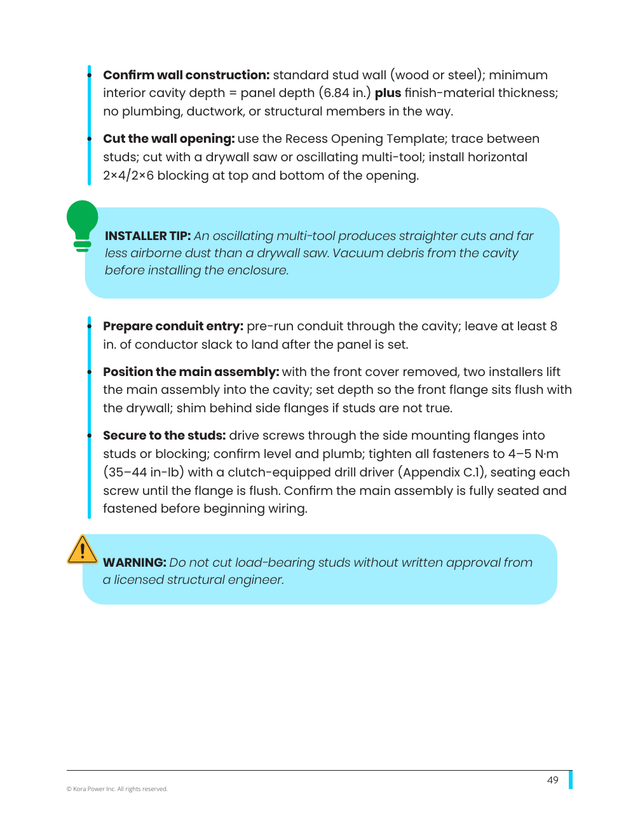

From the manual
The matching pages from the Kora Smart Panel & Powerblocks Installation Manual. Always follow the manual and local code.
