Kora Founders Edition Install 3.2 | Powerblocks Clearances and Location

Select the installation space for the Powerblocks and keep the required clearances around each tower. Good spacing keeps the hybrid inverter cool and leaves room to service it.

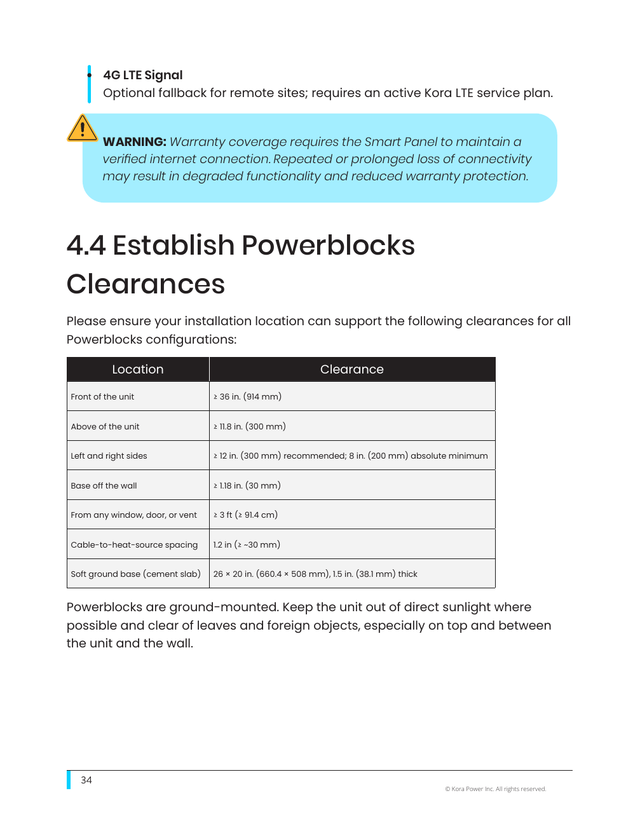

Confirm the location against the manual's clearance table before you set the base.

Clearances to plan for

• At least 12 in of clearance on the left and right, 8 in at an absolute minimum
• 11.8 in of clearance above the unit
• At least 3 ft from any window, door or vent

Part of the Kora Smart Panel installation series for licensed electricians installing the Kora Founders Edition. Previous: 3.1 Powerblocks Overview and Box Contents. Next: 3.3 Mounting the Powerblocks Base.
