Kora Founders Edition Install 3.1 | Powerblocks Overview and Box Contents
What each Powerblocks tower is made of and what comes in the box.
Get ready to set up Powerblocks backup: what each tower is and what comes in the box. The Smart Panel supports up to four Powerblocks towers.

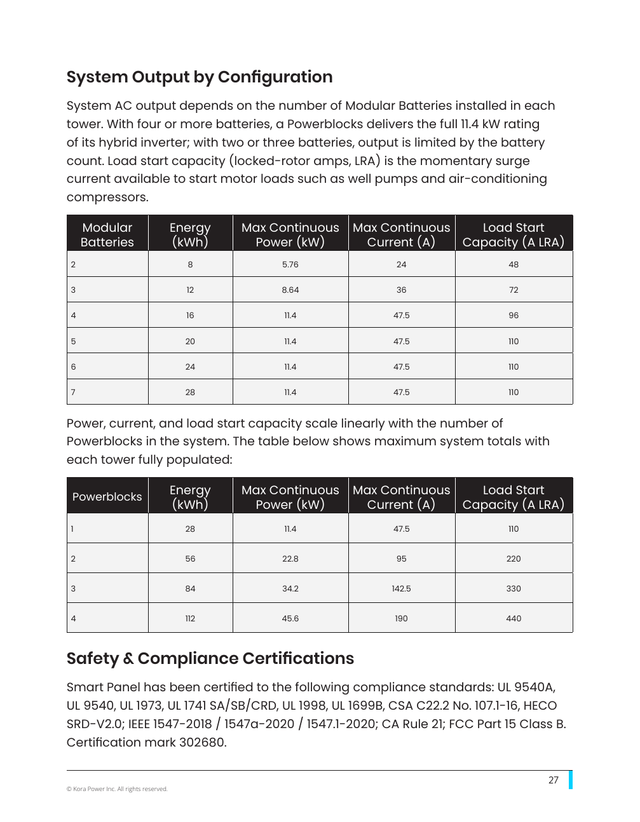

Each tower is a hybrid inverter plus 2 to 7 modular batteries. Output and capacity scale with the number of battery modules; the manual's specification table lists the figures for each configuration. Record serial numbers as you unpack.

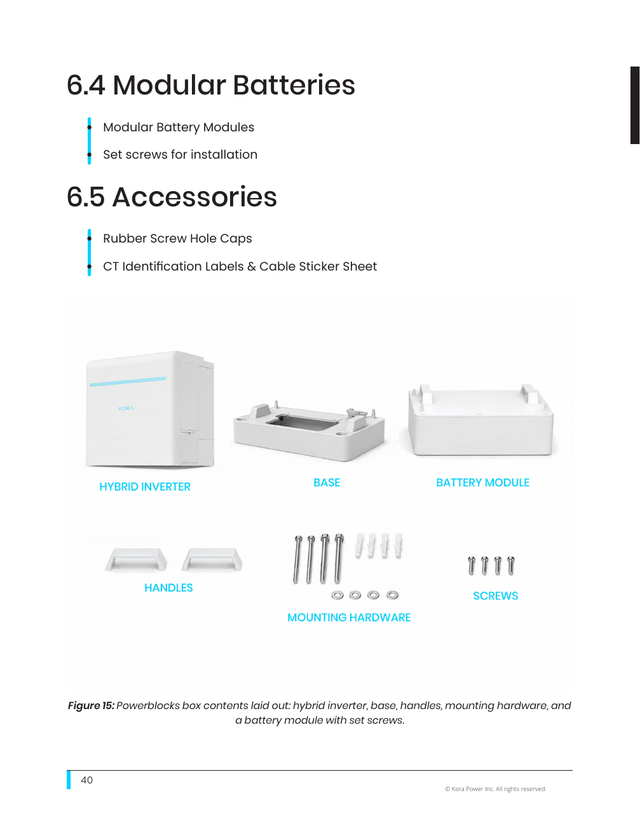

In the box
- Hybrid inverter package: tower base, mounting hardware and lifting handles
- Each battery package: the battery, set screws and labels
Part of the Kora Smart Panel installation series for licensed electricians installing the Kora Founders Edition. Previous: 2.10 Smart Panel Installed: Next, Powerblocks. Next: 3.2 Powerblocks Clearances and Location.
From the manual

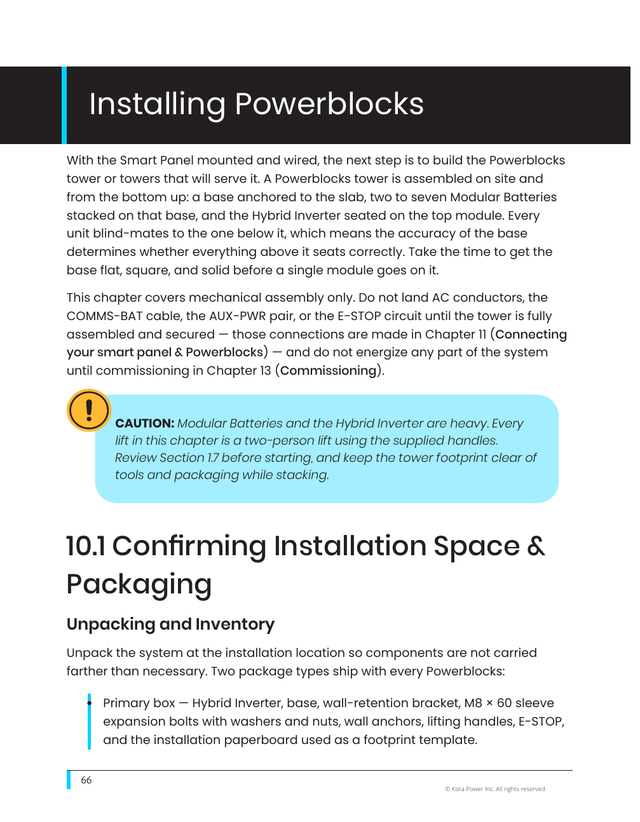

The matching pages from the Kora Smart Panel & Powerblocks Installation Manual. Always follow the manual and local code.
