Kora Founders Edition Install 1.1 | Smart Panel Clearances and Location

Before anything goes on the wall, plan where the Kora Smart Panel will sit and confirm the working clearances around it. Getting the location right first saves rework later, because the door swing, display height and conduit routes all depend on it.

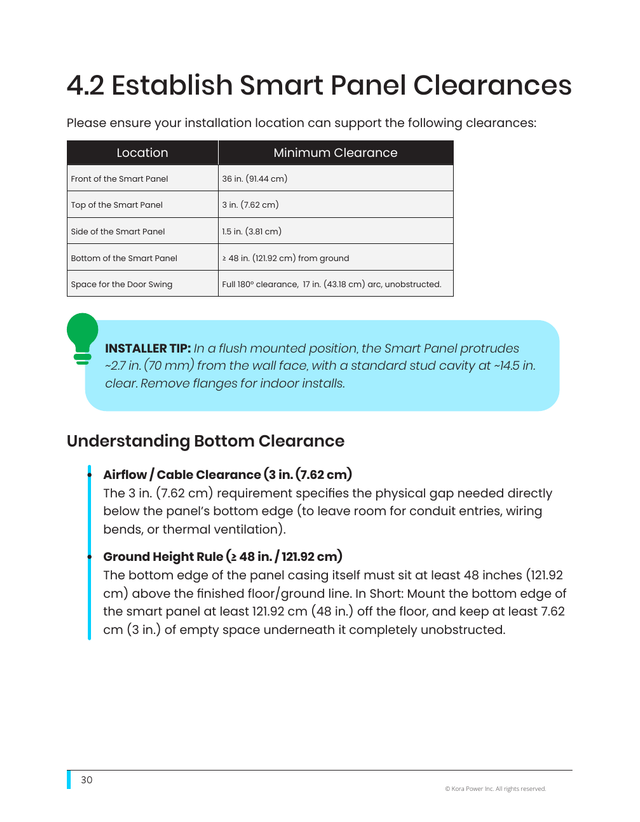

The manual's clearance table matches the numbers in this video, so confirm every measurement in your site plan before you start mounting.

Clearances to plan for

• 36 in of clear working space in front of the panel
• 3 in above and 1.5 in on each side

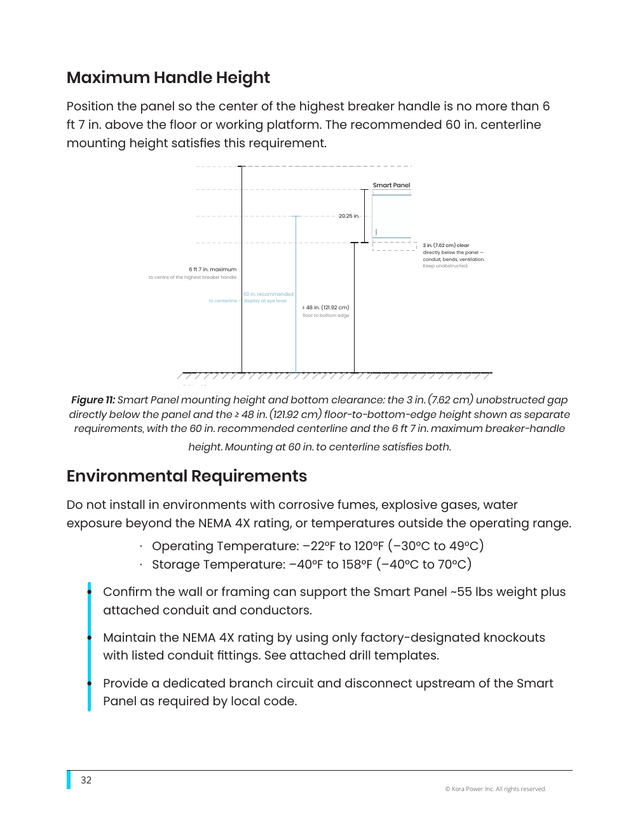

• Bottom of the panel at least 48 in off the finished floor, with the display at about 60 in (eye level)
• 17 in to the left or right so the door can swing fully open

Part of the Kora Smart Panel installation series for licensed electricians installing the Kora Founders Edition. Next: 1.2 Kill the Power: Lockout/Tagout.
